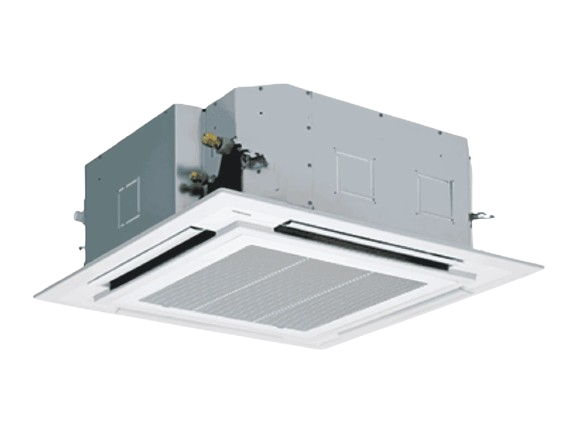

Inverter Cassette
A compact, energy-efficient inverter cassette air conditioner designed for light commercial applications. Built with a 4-way cassette system, it delivers uniform cooling, high efficiency, and reliable performance across diverse environments.
Why Choose Inverter Cassette?
R32 Refrigerant
lower environmental impact with reduced CO₂ emissions
High Energy Performance
optimized power consumption with ISEER up to 4.62
Aluminum Alloy Heat Exchanger
corrosion‑resistant & long‑life design
Wide Ambient Operation (Up to 52°C)
reliable cooling even in extreme temperatures
Micro Channel Heat Exchanger
enhanced durability with superior corrosion resistance
Protection Circuit System
stable performance during voltage fluctuations
Sealed Inverter Box
prevents dust, sand and external contamination
Compact & Lightweight Design
easy installation even in tight commercial spaces
5-Step Airflow Control
precise cooling with better airflow accuracy
Perfect For

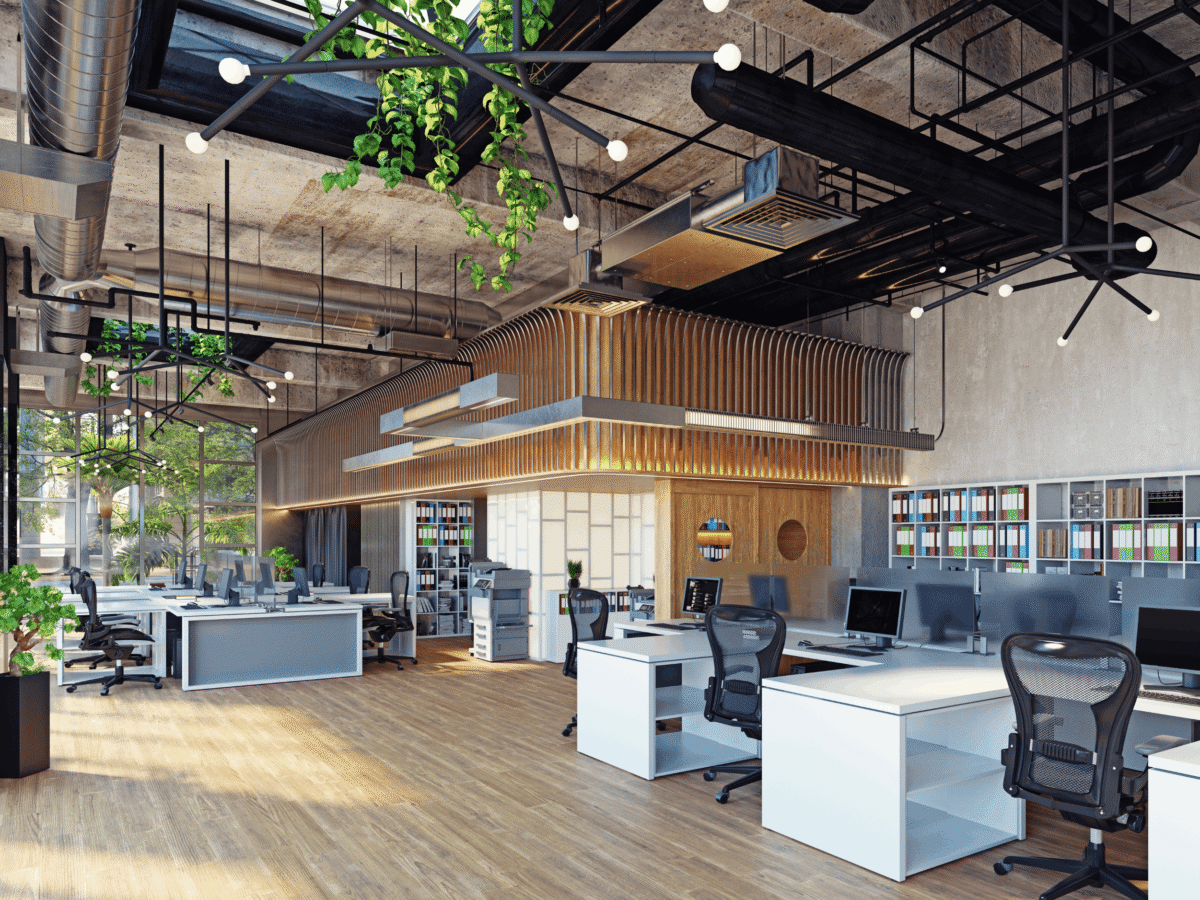

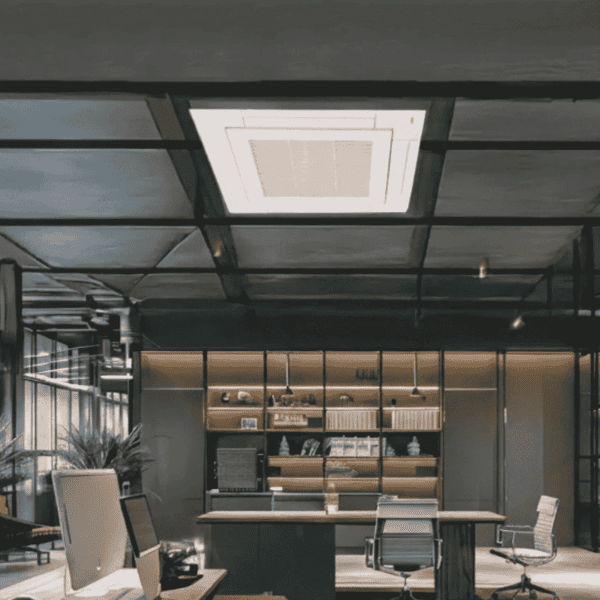

Offices
Reliable, quiet cooling that keeps meetings comfortable.
Living spaces and small commercial interiors
Energy-efficient comfort that creates a relaxing guest experience.
Restaurant
Consistent cooling that keeps dining areas fresh and comfortable.
Retail stores
Consistent cooling that keeps retail environments comfortable for customers and staff.
Variants
2-6 HP
Specifications
|
Equivalent
|
HP
|
2.0
|
3.0
|
4.0
|
5.0
|
6.0
|
|
|---|---|---|---|---|---|---|---|
|
Model Name
|
Indoor Unit
|
(RAV-)
|
GV1802UD-IN
|
GV2402UD-IN
|
GV3602UD-IN
|
GV4202UD-IN
|
GV4802UD-IN
|
|
Outdoor Unit
|
(RAV-)
|
GV1802AD-IN
|
GV2402AD-IN
|
GV3602A8D-IN
|
GV4202A8D-IN
|
GV4802A8D-IN
|
|
|
Power Supply
|
Outdoor Unit
|
1-Phase, 50Hz, 230V
|
3-Phase, 50Hz, 400V
|
||||
|
Cooling Capacity
|
|
kW
|
5.2 (1.3–5.5)
|
7.0 (1.3–7.6)
|
10.6 (3.5–11.2)
|
12.3 (3.5–12.8)
|
14.1 (3.5–15.0)
|
|
Power Consumption
|
|
kW
|
1.54
|
2.02
|
3.42
|
4.25
|
4.72
|
|
EER
|
|
|
3.38
|
3.47
|
3.10
|
2.89
|
2.99
|
|
ISEER
|
|
|
4.50 (3-Star)
|
4.62 (3-Star)
|
4.10 (5-Star)
|
4.05 (5-Star)
|
4.10 (5-Star)
|
|
Indoor unit
|
Airflow (H/M/L)
|
m3/h
|
1,010/850/790
|
1,050/880/820
|
1,670/1,510/1,260
|
1,870/1,700/1,560
|
1,900/1,730/1,580
|
|
Sound Pressure Level (H/M/L)
|
dB(A)
|
35/31/29
|
36/32/29
|
47/45/40
|
42/40/38
|
43/41/39
|
|
|
Dimensions (HxWxD)
|
Main unit (mm)
|
223x840x840
|
223x840x840
|
223x840x840
|
286x840x840
|
286x840x840
|
|
|
Panel (mm)
|
30x950x950
|
30x950x950
|
30x950x950
|
30x950x950
|
30x950x950
|
||
|
Weight
|
Main unit (kg)
|
18
|
21
|
21
|
24
|
24
|
|
|
Panel (kg)
|
5
|
5
|
5
|
5
|
5
|
||
|
Outdoor Unit
|
Refrigerant Charge (R32)
|
kg
|
0.55
|
0.87
|
1.03
|
1.08
|
1.13
|
|
Sound Pressure Level
|
dB(A)
|
56
|
55
|
53
|
56.5
|
58
|
|
|
Dimensions (HxWxD)
|
mm
|
561x825x353
|
691x975x353
|
890x900x320
|
890x900x320
|
890x900x320
|
|
|
Weight
|
kg
|
27
|
36
|
46
|
46
|
53
|
|
|
Piping Connections
|
Liquid Side
|
mm
|
6.4
|
9.5
|
9.5
|
9.5
|
9.5
|
|
Gas Side
|
mm
|
12.7
|
15.9
|
15.9
|
15.9
|
15.9
|
|
|
Max. Total
|
Pipe Length
|
m
|
25
|
25
|
30
|
30
|
50
|
|
Max. height
|
|
m
|
10
|
10
|
20
|
20
|
30
|
|
Operation range
|
Range
|
°C
|
15 ~ 52
|
15 ~ 52
|
15 ~ 52
|
15 ~ 52
|
15 ~ 52
|
