Toshiba Stable Power Inverter Ducted
A compact, energy‑saving air conditioning system designed for light commercial applications. The SPI Ducted air conditioner delivers high reliability, strong cooling performance, and reduced refrigerant volume, making it ideal for retail stores, restaurants, offices, and modern commercial interiors. Powered by R32 refrigerant and advanced Toshiba engineering, it ensures long‑term efficiency and stable performance.
Why choose the Stable Power Inverter Ducted AC?
High Energy Efficiency
Delivers efficient cooling performance with ISEER values up to 4.56, helping reduce electricity consumption.
Eco-Friendly R32 Refrigerant
Uses low-GWP R32 refrigerant to reduce environmental impact while maintaining strong cooling performance.
Compact & Lightweight Design
Outdoor units are compact and lightweight, making installation easy even in tight spaces.
Durable Heat Exchanger
Built with an aluminum alloy heat exchanger and corrosion-resistant coatings for long-lasting durability.
Stable Power Protection
Ensures reliable operation in unstable power conditions with sealed inverter box and PCB protection.
Installer-Friendly Design
Designed for easy installation with reusable piping and convenient transport.
Perfect for
Retail Stores
Consistent cooling that keeps retail environments comfortable for customers and staff.
Restaurants & Cafes
Consistent cooling that keeps dining areas fresh and comfortable.

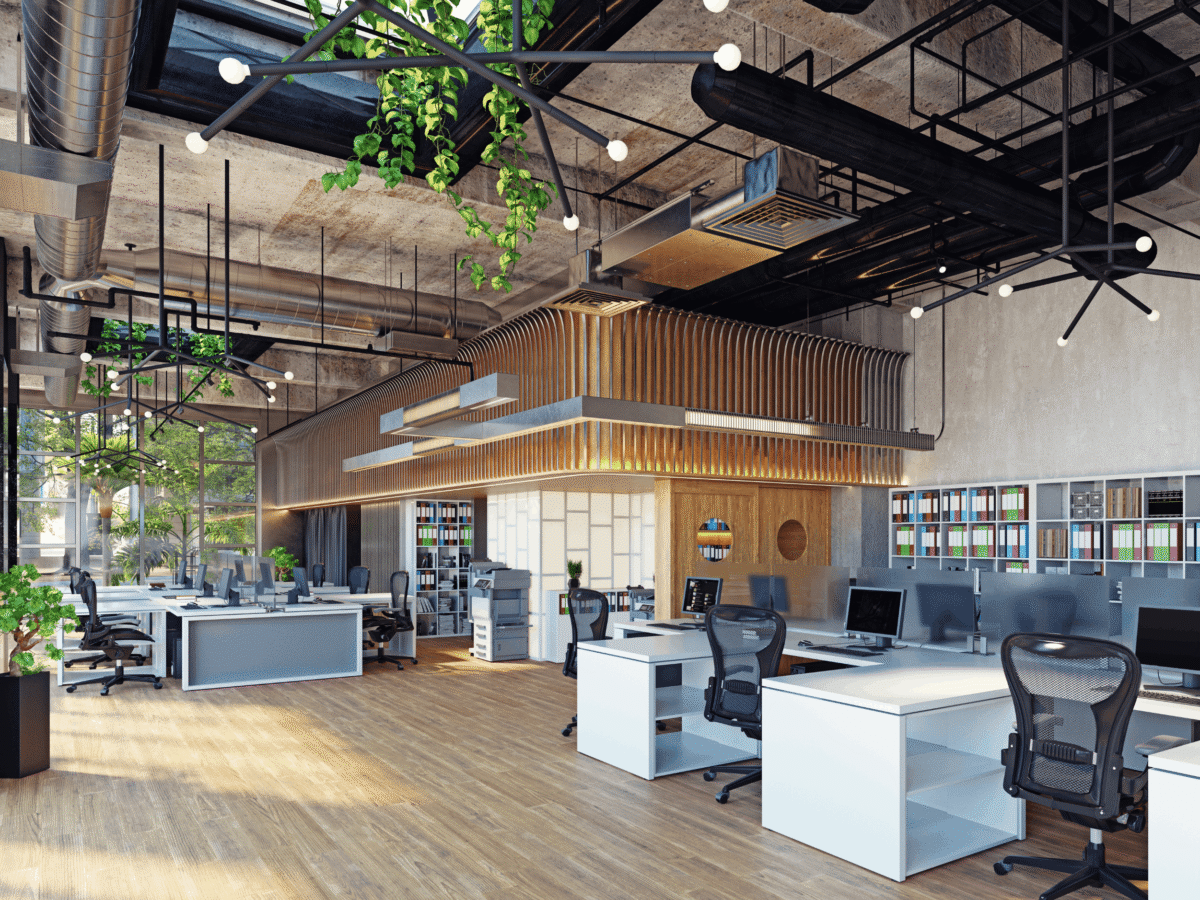

Offices & Workspace Areas
Reliable, quiet cooling that keeps meetings comfortable.
Living Rooms
Energy-efficient comfort that creates a relaxing guest experience.
Variants
2-6 HP
Specifications
|
Equivalent
|
2.0
|
3.0
|
4.0
|
5.0
|
6.0
|
||
|---|---|---|---|---|---|---|---|
|
Model Name
|
Indoor Unit (RAV-)
|
GV1801BP-IN
|
GV2401BP-IN
|
GV3601BP-IN
|
GV4201BP-IN
|
GV4801BP-IN
|
|
|
Outdoor Unit (RAV-)
|
GV1801AP-IN
|
GV2401AP-IN
|
GV3601A8P-IN
|
GV4201A8P-IN
|
GV4801A8P-IN
|
||
|
Power Supply (Outdoor Unit)
|
1-phase 50Hz 230V
|
3-phase 50Hz 400V
|
|||||
|
Cooling capacity (KW)
|
5.3 (1.3 - 5.6)
|
7.1 (1.3 - 8.0)
|
10.6 (3.5 - 11.2)
|
12.3 (3.5 - 13.2)
|
14.1 (3.5 - 15.9)
|
||
|
Power consumption (KW)
|
1.60
|
2.29
|
3.40
|
4.10
|
4.78
|
||
|
EER
|
3.31
|
3.10
|
3.12
|
3.00
|
2.95
|
||
|
Indoor unit
|
Airflow (H/M/L) (m³/h)
|
900/720/540
|
1440/1220/960
|
1710/1260/830
|
2100/1650/1260
|
2100/1650/1260
|
|
|
External static pressure
|
Standard (Pa)
|
30
|
30
|
30
|
50
|
50
|
|
|
Upper-Lower (Pa)
|
120–30
|
120–30
|
120–30
|
120–30
|
120–30
|
||
|
Sound pressure level (H/M/L)
|
33/29/25
|
41/37/34
|
44/42/39
|
44/42/39
|
44/42/39
|
||
|
Dimensions (HxWxD)
|
275x700x750
|
275x1000x750
|
275x1000x750
|
275x1400x750
|
275x1400x750
|
||
|
Weight
|
23
|
31
|
31
|
41
|
41
|
||
|
Outdoor Unit
|
Refrigerant charge (kg)
|
0.7
|
0.9
|
1.05
|
1.05
|
1.2
|
|
|
Sound pressure level dB(A)
|
52
|
52
|
53
|
54
|
58
|
||
|
Dimensions (HxWxD) (mm)
|
550x780x290
|
550x780x290
|
890x900x320
|
890x900x320
|
890x900x320
|
||
|
Weight (kg)
|
27
|
32
|
52
|
52
|
53
|
||
|
Piping Connections
|
Liquid side (mm)
|
6.4
|
9.5
|
9.5
|
9.5
|
9.5
|
|
|
Gas side (mm)
|
12.7
|
15.9
|
15.9
|
15.9
|
15.9
|
||
|
Max. total pipe length
|
25
|
25
|
30
|
30
|
50
|
||
|
Max. height
|
10
|
10
|
20
|
20
|
30
|
||
|
Operation range
|
15 ~ 46
|
15 ~ 46
|
15 ~ 46
|
15 ~ 46
|
15 ~ 46
|
||
Get in Touch
Contact our experts for technical support, product information, or to request a customized solution.
